GoControl GD00Z Z-Wave Plus Garage Door Controller - OPEN BOX
GoControl GD00Z Z-Wave Plus Garage Door Controller - OPEN BOX
Out of stock
Couldn't load pickup availability

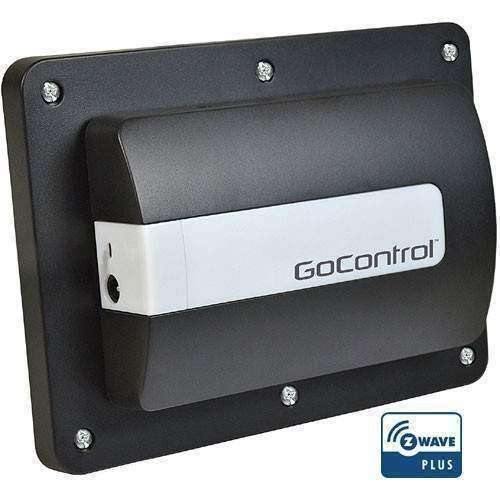

Z-Wave Smart Garage Door Controller
GoControl's GD00Z is a Z-Wave Plus garage door controller that's designed to remotely and automatically open and close garage doors. The unit is easy to install and works with all Z-Wave certified smart home software and hubs.
Features
- Broad Compatibility: Compatible with most automatic sectional garage door openers, including models from LiftMaster, Chamberlain, and Genie, provided they use standard relay-based controls.
- Remote Access via Z-Wave: Allows you to open or close your garage door remotely through a Z-Wave certified gateway or security panel.
- Enhanced Security with S2 Encryption: Utilizes Z-Wave Plus S2 security for encrypted communication between the hub and devices, ensuring secure operation.
- Over-the-Air Firmware Updates: Supports over-the-air firmware updates, providing the latest product enhancements without the need for manual intervention.
- Safety Compliance: Meets UL 325-2010 safety requirements, providing peace of mind regarding safety standards.
- Audible and Visual Warnings: Provides both audible and visual warnings prior to door movement, enhancing safety by alerting individuals nearby.
- Wireless Tilt Sensor: Includes a wireless tilt sensor that reports the door's open or closed status, allowing for accurate monitoring.
- Easy Installation: Features a straightforward installation process: mount the unit, connect two wires, and pair it with a Z-Wave certified gateway.
- Z-Wave Plus Certification: Certified under the Z-Wave Plus program, ensuring improved range, extended battery life, and additional RF channels.
- Integration with Other Z-Wave Devices: Acts as a wireless repeater to ensure that commands intended for another device in the network are received, enhancing overall network reliability.
Specs
- Z-Wave Plus Certified
- 120v/60hz White
- Signal (Frequency): 908.42 MHz, 9.6Kbps or 40Kbps capable
- Garage door position sensor frequency: 345 MHz
Downloads
Included
- GD00Z Control Module
- Garage Door Sensor
- Mounting Hardware
Condition
| Open Box stock includes customer returns that have been opened or new items with damaged packaging. Most items are in 'like new' condition but some may have slight cosmetic blemishes. All open box items come with the original manufacturer's warranty and are also covered by our 30-day return policy. |
Share
Easy enough to install. I used the included mounting bracket to bolt the unit to the opener's angle iron supports. Make sure to do the z-wave setup _before_ mounting, since the quick inclusion code won't be visible once it's screwed down. This device replaced an Insteon relay module that died, so I already had a pair of wires soldered onto the new-style programmable pushbutton PCB's relay contacts of my Craftsman-branded Chamberlain opener. So yes, it can be used with the MyQ series with a minor mod -- minor _if_ you or a friend can do basic soldering.
Works fine with Home Assistant. Note: after z-wave inclusion into my Home Assistant system the light and warning sound were both set to "on" and the unit started flashing and sounding continuously until I turned them off in the HA settings page for the newly added device. Turning the light and siren off in the config doesn't stop the "gonna open in 5 seconds" warnings, it just stops them sounding continuously. The siren is loud -- I'd suggest not doing z-wave inclusion while other household members are sleeping!
I have one of these systems and the switch on the door failed within a year. Cannot find a replacement anywhere so the whole thing is dependent on a cheap switch.
The GD00Z does not come with a door switch. It simply wires in parallel with the existing door switch.
My new GD00Z Z Controller works awesome right out of the box (after setup). I use it with Alexa and the Steward App that came with the house. Our new Smart Home came stocked with a few WD100's. I've added this Garage Door Controller and five WD200's. Haven't learned how to get the status of the front and garage doors to light up the LED lights in the five WD200's yet! I'm learning... Any advice on how to set up these switches?
First of all the unit works great, looks very professional and does what I need it to do...now. I took off two stars, the first for the lack of information regarding compatibility with smart Garage Door openers like mine (Craftsman MyQ). I did find a nice workaround to get it to work but lets just say I'm down one Remote as a result. The second star I took off is for the lack of Battery info from the Tilt sensor, just didn't make sense to me. It's nights like last night where I left the garage open until my event ran and closed the door that makes this unit all worth the hassles I had.
I see a LOT of reviews with low stars saying the unit stops working.
If the unit stops working check the BATTERY ON THE TILT SENSOR.
I'm giving it 3 start not 5 only bc the unit should report the battery status of the tilt sensor in HS3! That's a REALLY big issue as if you don't have a backup method to open for door it's a BIG problem when the battery in tilt sensor goes!
